FT-T Junk Mill With Combined Dressing

Show video

Application

FT-T junk mill with combined dressing is used to destroy metal objects and cement during intervention operations in oil, gas and exploration wells.

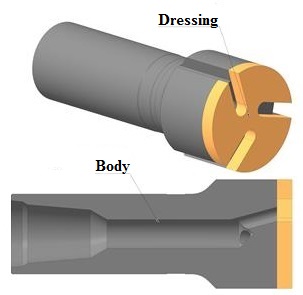

Design

The junk mill with combined dressing consists of a body and flat cutting-crushing braze of tungsten carbide.
It has thread connection at the upper part of the body, and circulation ports and relevant watercourses for better cooling and efficient cuttings removal.
The lateral surface of the braze is ground flush with body OD.

Images and Dimensions

Technical data

To cart	Code	Washing channel diameter, in	OD, in	Length, ft	Compatible API connection	Thickness of dressing, in
	X-56	0.39	2.2	0.46	З-33	0.59
	X-80	0.47	3.17	0.52	2-3/8 Reg	0.79
	X-90	0.47	3.54	1.31	2-3/8 Reg	0.79
	X-102	0.47	4.02	1.31	2-3/8 Reg	0.79
	X-112	0.63	4.41	1.31	2-7/8 Reg	0.79
	X-114	0.63	4.5	1.31	2-7/8 Reg	0.79
	X-117	0.63	4.5	1.31	2-7/8 Reg	0.79
	X-118	0.63	4.65	1.31	2-7/8 Reg	0.79
	X-120	0.63	4.72	1.31	2-7/8 Reg	0.79
	X-121	0.63	4.75	1.31	2-7/8 Reg	0.79
	X-122	0.63	4.81	1.31	2-7/8 Reg	0.79
	X-124	0.63	4.87	1.31	2-7/8 Reg	0.79
	X-127	0.63	5.0	1.31	2-7/8 Reg	0.79
	X-130	0.63	5.13	1.31	2-7/8 Reg	0.79
	X-133	0.63	5.25	1.31	2-7/8 Reg	0.79
	X-136	0.63	5.37	1.31	3-1/2 Reg	0.79
	X-140	0.79	5.5	1.31	3-1/2 Reg	0.79
	X-143	0.79	5.63	1.31	3-1/2 Reg	0.79
	X-146	0.79	5.75	1.31	3-1/2 Reg	0.79
	X-149	0.79	5.87	1.31	3-1/2 Reg	0.79
	X-152	0.79	6.0	1.31	3-1/2 Reg	0.79
	X-156	0.79	6.13	1.31	3-1/2 Reg	0.79
	X-159	0.79	6.25	1.31	3-1/2 Reg	0.79
	X-162	0.79	6.25	1.31	3-1/2 Reg	0.79
	X-165	0.79	6.5	1.31	3-1/2 Reg	0.79
	X-168	1.42	6.63	1.31	4-1/2 FH	0.79
	X-171	1.42	6.75	1.31	4-1/2 FH	0.79
	X-175	1.42	6.75	1.31	4-1/2 FH	0.79
	X-178	1.42	7.0	1.31	4-1/2 FH	0.79
	X-181	1.42	7.13	1.31	4-1/2 FH	0.79
	X-184	1.42	7.25	1.31	4-1/2 FH	0.79
	X-187	1.42	7.37	1.31	4-1/2 FH	0.79
	X-191	1.42	7.5	1.31	4-1/2 FH	0.79
	X-194	1.42	7.63	1.31	4-1/2 FH	0.79
	X-197	1.42	7.75	1.31	4-1/2 FH	0.79
	X-200	1.42	7.87	1.31	4-1/2 FH	0.79
	X-210	1.42	8.25	1.31	4-1/2 FH	0.79
	X-213	1.57	8.37	1.48	5-1/2 FH	0.98
	X-216	1.57	8.37	1.48	5-1/2 FH	0.98
	X-219	1.57	8.63	1.48	5-1/2 FH	0.98
	X-222	1.57	8.75	1.48	5-1/2 FH	0.98
	X-225	1.57	8.87	1.48	5-1/2 FH	0.98
	X-229	1.57	9.0	1.48	5-1/2 FH	0.98
	X-232	1.57	9.13	1.48	5-1/2 FH	0.98
	X-235	1.57	9.25	1.48	5-1/2 FH	0.98
	X-238	1.57	9.37	1.48	5-1/2 FH	0.98
	X-241	1.57	9.5	1.48	5-1/2 FH	0.98
	X-245	1.57	9.63	1.48	5-1/2 FH	0.98
	X-248	1.57	9.75	1.48	5-1/2 FH	0.98
	X-251	1.57	9.87	1.48	5-1/2 FH	0.98
	X-254	1.57	10.13	1.48	5-1/2 FH	0.98
	X-257	1.57	10.13	1.48	5-1/2 FH	0.98
	X-260	1.57	10.25	1.48	5-1/2 FH	0.98
	X-264	1.57	10.37	1.48	5-1/2 FH	0.98
	X-267	1.57	10.5	1.48	5-1/2 FH	0.98
	X-270	1.57	10.63	1.48	5-1/2 FH	0.98
