TLNT Releasable Overshot

Show video

Application

TLNT releasable overshot is designed to engage and retrieve tubular fish from a wellbore.

Design

TLNT is used in severe environment.
Accessories available for the releasable overshot:

extension 500…1000 mm long;
guides with increased diameter;
limiting sleeves.

To pack off connection between the overshot and a fishing string, packers are available upon request.
Releasable overshot is available in left/right hand configuration.

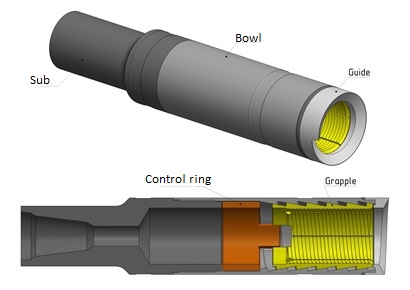

Images and Dimensions

Technical data

To cart	Code	OD, in	Total length, ft	Compatible API connection	Load capacity, lbf	Spiral grapple, in	Size of basket grapple, in	Weight, lb
	TLNT-90	3.57	1.97	NC 26	224 800	2-1/2 - 2-3/4	1-3/4 - 2-3/8	28
	TLNT-118	4.63	2.54	2-7/8 Reg	382 200	3-1/8 - 3-1/2	1-7/8 - 3-1/8	54.67
	TLNT-122	4.81	2.55	2-7/8 Reg	400 200	3-5/16 - 3-5/8	1-7/8 - 3-1/4	60.41
	TLNT-124	4.89	2.55	2-7/8 Reg	388 900	3-1/2 - 3-3/4	2-1/8 - 3-3/8	55.78
	TLNT-130	5.13	2.55	2-7/8 Reg	485 600	3-5/8 - 4,0	1-7/8 - 3-5/8	73.63
	TLNT-140	5.51	2.87	2-7/8 Reg	442 900	4,0 - 4-3/8	2-5/8 - 3-3/4	76.72
	TLNT-146	5.75	2.87	3-1/2 Reg	449 600	4,0 - 4-5/8	2-1/8 - 3-7/8	86.64
	TLNT-156	6.14	2.85	3-1/2 Reg	494 600	4-1/4 - 4-13/16	2-3/8 - 4-1/8	92.59
	TLNT-168	6.64	2.85	3-1/2 Reg	674 400	4-1/2 - 5-1/8	2-5/8 - 4-3/8	101.4
	TLNT-175	6.89	2.85	NC 50	730 600	4-3/4 - 5-3/8	2-7/8 - 4-5/8	105.8
	TLNT-188	7.39	2.85	NC 50	813 800	5-1/8 - 5-3/4	3-1/3 - 4-3/4	114.6
	TLNT-194	7.64	2.85	5-1/2 FH	854 300	5-3/8 - 6,0	3-3/8 - 5-1/4	125.7
	TLNT-206	8.13	2.85	5-1/2 FH	1 012 000	5-7/8 - 6-1/2	3-5/8 - 5-3/4	167.6
	TLNT-220	8.65	2.85	5-1/2 FH	1 124 000	6-3/8 - 7,0	4-1/8 - 6-1/4	189.6
