FTS Junk Mill With Stabilizer

Application

The Junk Mill Special With Stabilizing Elements FTS is designed to destruct metal objects, cement stone and cemented metal objects over all well section during repair and recovery works in the well.

Design

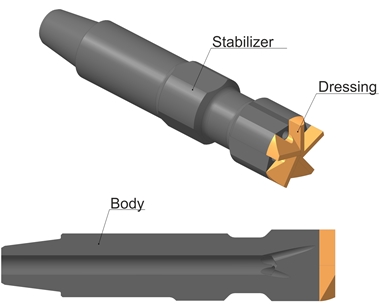

The Junk Mill Special With Stabilizing Elements consists of high-strength alloy steel body and cutting and grinding dressing with crshed tungsten carbide.
There is a connection thread at the upper part of body, stabilizing element - in the middle, ports and grooves for effective cooling and intensive washing are placed at the bottom.

The Mill can be designed:

With toothed abrasive surface of dressign with four, five or six blades for different milling conditions;
In left/right configuration.

Images and Dimensions

Technical data

To cart	Code	Washing channel diameter, in	OD, in	Length, ft	Connection, API	Thickness of dressing, in
	X-56	0.39	2.2	0.46	З-33	0.59
	X-80	0.47	3.17	0.52	2-3/8 Reg	0.79
	X-90	0.47	3.54	1.31	2-3/8 Reg	0.79
	X-102	0.47	4.02	1.31	2-3/8 Reg	0.79
	X-112	0.63	4.41	1.31	2-7/8 Reg	0.79
	X-114	0.63	4.5	1.31	2-7/8 Reg	0.79

You can specify the size of an item on the checkout page.
