FD Bit Mill

Full specifications

Application

FD bit mill is used for milling cement and sand plugs, and casing accessories under light impact loads.

Design

FD bit mill is dressed with carbide inserts to efficiently mill copper and aluminium containing light alloy.

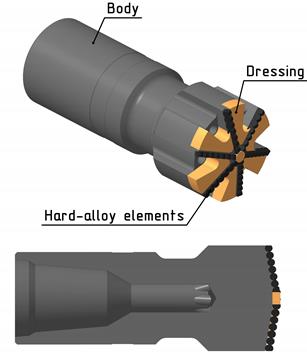

Images and Dimensions

Technical data

To cart	Code	OD, in	Total length, ft	Connecting thread	Weight, lb
	FD-83	3.0	0.92	2-3/8 Reg	21.39
	FD-85	3.35	0.92	2-3/8 Reg	22.49
	FD-92	3.62	0.92	2-3/8 IF	23.81
	FD-100	3.94	0.98	2-3/8 IF	25.36
	FD-102	3.94	0.98	2-3/8 IF	26.02
	FD-104	4.09	0.98	2-3/8 IF	26.46
	FD-112	4.41	0.98	2-3/8 IF	33.08
	FD-114	4.49	0.98	2-3/8 IF	33.52
	FD-115	4.53	0.98	2-7/8 IF	33.52
	FD-118	4.65	0.98	2-7/8 IF	35.28
	FD-138	5.43	1.12	2-7/8 IF	40.79
	FD-141	5.55	1.12	2-7/8 IF	42.78

You can specify the size of an item on the checkout page.
