Application

FTS special junk mill with stabilizers is designed to destroy metal objects, cement and cemented metal objects all across wellbore cross-section.

Design

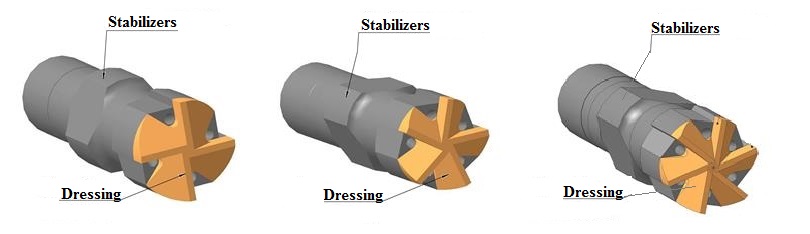

The junk mill with stabilizers consists of a body made of high-strength alloy steel and cutting-crushing braze of crushed tungsten carbide in nickel/brass matrix.
It has thread connection at the upper part of the body, stabilizing lobes in the middle, and circulation ports and relevant watercourses for better cooling and more efficient removal of cuttings at the lower end and flank.

The mill is available:

  • with four, five and six blades for various milling conditions;
  • and in left- and right-hand configuration.
Images and Dimensions
Technical data
To cart Code Watercourse
size, in
OD, in Total length,
ft
Top connection,
compatible with API
Thickness of dressing, in
X-56 0.39 2.2 0.46 З-33 0.59
X-80 0.47 3.17 0.52 2-3/8 Reg 0.79
X-90 0.47 3.54 1.31 2-3/8 Reg 0.79
X-102 0.47 4.02 1.31 2-3/8 Reg 0.79
X-112 0.63 4.41 1.31 2-7/8 Reg 0.79
X-114 0.63 4.5 1.31 2-7/8 Reg 0.79
X-117 0.63 4.5 1.31 2-7/8 Reg 0.79
X-118 0.63 4.65 1.31 2-7/8 Reg 0.79
X-120 0.63 4.72 1.31 2-7/8 Reg 0.79
X-121 0.63 4.75 1.31 2-7/8 Reg 0.79
X-122 0.63 4.81 1.31 2-7/8 Reg 0.79
X-124 0.63 4.87 1.31 2-7/8 Reg 0.79
X-127 0.63 5.0 1.31 2-7/8 Reg 0.79
X-130 0.63 5.13 1.31 2-7/8 Reg 0.79
X-133 0.63 5.25 1.31 2-7/8 Reg 0.79
X-136 0.63 5.37 1.31 3-1/2 Reg 0.79
X-140 0.79 5.5 1.31 3-1/2 Reg 0.79
X-143 0.79 5.63 1.31 3-1/2 Reg 0.79
X-146 0.79 5.75 1.31 3-1/2 Reg 0.79
X-149 0.79 5.87 1.31 3-1/2 Reg 0.79
X-152 0.79 6.0 1.31 3-1/2 Reg 0.79
X-156 0.79 6.13 1.31 3-1/2 Reg 0.79
X-159 0.79 6.25 1.31 3-1/2 Reg 0.79
X-162 0.79 6.25 1.31 3-1/2 Reg 0.79
X-165 0.79 6.5 1.31 3-1/2 Reg 0.79
X-168 1.42 6.63 1.31 4-1/2 FH 0.79
X-171 1.42 6.75 1.31 4-1/2 FH 0.79
X-175 1.42 6.75 1.31 4-1/2 FH 0.79
X-178 1.42 7.0 1.31 4-1/2 FH 0.79
X-181 1.42 7.13 1.31 4-1/2 FH 0.79
X-184 1.42 7.25 1.31 4-1/2 FH 0.79
X-187 1.42 7.37 1.31 4-1/2 FH 0.79
X-191 1.42 7.5 1.31 4-1/2 FH 0.79
X-194 1.42 7.63 1.31 4-1/2 FH 0.79
X-197 1.42 7.75 1.31 4-1/2 FH 0.79
X-200 1.42 7.87 1.31 4-1/2 FH 0.79
X-210 1.42 8.25 1.31 4-1/2 FH 0.79
X-213 1.57 8.37 1.48 5-1/2 FH 0.98
X-216 1.57 8.37 1.48 5-1/2 FH 0.98
X-219 1.57 8.63 1.48 5-1/2 FH 0.98
X-222 1.57 8.75 1.48 5-1/2 FH 0.98
X-225 1.57 8.87 1.48 5-1/2 FH 0.98
X-229 1.57 9.0 1.48 5-1/2 FH 0.98
X-232 1.57 9.13 1.48 5-1/2 FH 0.98
X-235 1.57 9.25 1.48 5-1/2 FH 0.98
X-238 1.57 9.37 1.48 5-1/2 FH 0.98
X-241 1.57 9.5 1.48 5-1/2 FH 0.98
X-245 1.57 9.63 1.48 5-1/2 FH 0.98
X-248 1.57 9.75 1.48 5-1/2 FH 0.98
X-251 1.57 9.87 1.48 5-1/2 FH 0.98
X-254 1.57 10.13 1.48 5-1/2 FH 0.98
X-257 1.57 10.13 1.48 5-1/2 FH 0.98
X-260 1.57 10.25 1.48 5-1/2 FH 0.98
X-264 1.57 10.37 1.48 5-1/2 FH 0.98
X-267 1.57 10.5 1.48 5-1/2 FH 0.98
X-270 1.57 10.63 1.48 5-1/2 FH 0.98
You can specify the size of an item on the checkout page.
