FT-S Junk Mill With Stabilizer

Show video

Application

FT-S junk mill with stabilizers has a flat bottom with cutting-crushing braze of tungsten carbide and is used to destroy metal objects during intervention operations in a wellbore.

Design

Junk mill with stabilizers consists of a body and flat cutting-crushing braze of tungsten carbide. It has thread connection at the upper end of the body, stabilizers in the middle, and circulation ports and relevant watercourses for better cooling and more efficient removal of cuttings at the lower end. The lateral surface of the braze is ground flush with body OD. Stabilizers preclude damage of wellbore during long-lasting milling.

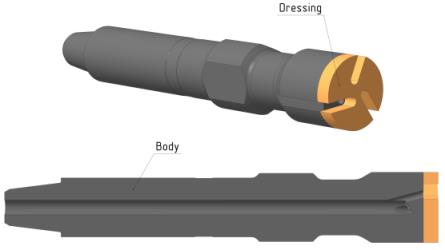

Images and Dimensions

Technical data

To cart	Code	Watercourse size, in	OD, in	Total length, ft	Top connection, compatible with API	Thickness of dressing, in
	X-56	0.39	2.2	0.46	З-33	0.59
	X-80	0.47	3.17	0.52	2-3/8 Reg	0.79
	X-90	0.47	3.54	1.31	2-3/8 Reg	0.79
	X-102	0.47	4.02	1.31	2-3/8 Reg	0.79
	X-112	0.63	4.41	1.31	2-7/8 Reg	0.79
	X-114	0.63	4.5	1.31	2-7/8 Reg	0.79
	X-117	0.63	4.5	1.31	2-7/8 Reg	0.79
	X-118	0.63	4.65	1.31	2-7/8 Reg	0.79
	X-120	0.63	4.72	1.31	2-7/8 Reg	0.79
	X-121	0.63	4.75	1.31	2-7/8 Reg	0.79
	X-122	0.63	4.81	1.31	2-7/8 Reg	0.79
	X-124	0.63	4.87	1.31	2-7/8 Reg	0.79
	X-127	0.63	5.0	1.31	2-7/8 Reg	0.79
	X-130	0.63	5.13	1.31	2-7/8 Reg	0.79
	X-133	0.63	5.25	1.31	2-7/8 Reg	0.79
	X-136	0.63	5.37	1.31	3-1/2 Reg	0.79
	X-140	0.79	5.5	1.31	3-1/2 Reg	0.79
	X-143	0.79	5.63	1.31	3-1/2 Reg	0.79
	X-146	0.79	5.75	1.31	3-1/2 Reg	0.79
	X-149	0.79	5.87	1.31	3-1/2 Reg	0.79
	X-152	0.79	6.0	1.31	3-1/2 Reg	0.79
	X-156	0.79	6.13	1.31	3-1/2 Reg	0.79
	X-159	0.79	6.25	1.31	3-1/2 Reg	0.79
	X-162	0.79	6.25	1.31	3-1/2 Reg	0.79
	X-165	0.79	6.5	1.31	3-1/2 Reg	0.79
	X-168	1.42	6.63	1.31	4-1/2 FH	0.79
	X-171	1.42	6.75	1.31	4-1/2 FH	0.79
	X-175	1.42	6.75	1.31	4-1/2 FH	0.79
	X-178	1.42	7.0	1.31	4-1/2 FH	0.79
	X-181	1.42	7.13	1.31	4-1/2 FH	0.79
	X-184	1.42	7.25	1.31	4-1/2 FH	0.79
	X-187	1.42	7.37	1.31	4-1/2 FH	0.79
	X-191	1.42	7.5	1.31	4-1/2 FH	0.79
	X-194	1.42	7.63	1.31	4-1/2 FH	0.79
	X-197	1.42	7.75	1.31	4-1/2 FH	0.79
	X-200	1.42	7.87	1.31	4-1/2 FH	0.79
	X-210	1.42	8.25	1.31	4-1/2 FH	0.79
	X-213	1.57	8.37	1.48	5-1/2 FH	0.98
	X-216	1.57	8.37	1.48	5-1/2 FH	0.98
	X-219	1.57	8.63	1.48	5-1/2 FH	0.98
	X-222	1.57	8.75	1.48	5-1/2 FH	0.98
	X-225	1.57	8.87	1.48	5-1/2 FH	0.98
	X-229	1.57	9.0	1.48	5-1/2 FH	0.98
	X-232	1.57	9.13	1.48	5-1/2 FH	0.98
	X-235	1.57	9.25	1.48	5-1/2 FH	0.98
	X-238	1.57	9.37	1.48	5-1/2 FH	0.98
	X-241	1.57	9.5	1.48	5-1/2 FH	0.98
	X-245	1.57	9.63	1.48	5-1/2 FH	0.98
	X-248	1.57	9.75	1.48	5-1/2 FH	0.98
	X-251	1.57	9.87	1.48	5-1/2 FH	0.98
	X-254	1.57	10.13	1.48	5-1/2 FH	0.98
	X-257	1.57	10.13	1.48	5-1/2 FH	0.98
	X-260	1.57	10.25	1.48	5-1/2 FH	0.98
	X-264	1.57	10.37	1.48	5-1/2 FH	0.98
	X-267	1.57	10.5	1.48	5-1/2 FH	0.98
	X-270	1.57	10.63	1.48	5-1/2 FH	0.98

You can specify the size of an item on the checkout page.
