Application

PB-G safety joint provides easy release from a stuck tool or a pipe during remediation.

Design

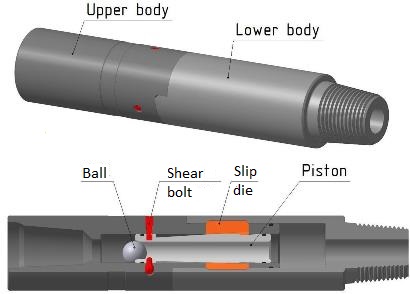

The safety joint is a short tube, made of alloy steel. It consists of upper body, lower body, piston and slip dies.

3 shear pins retain piston at place. External slotted connection transmits torque from the upper body to the lower body. The connection is sealed off with sealing rings. The safety joint has a watercourse for circulation.

It is available in right-hand and left-hand configurations.

Should the string be disconnected, drop the ball and apply pressure required to shear the bolts. After the joint is disconnected, pull out of hole.

BITTEKHNIKA, whose policy is one of continuous improvement, reserves the right to discontinue or change designs and specifications without notice or written incurring obligations. Therefore, the below figures are meant to serve as a guide only. Additional sizes are available. For a complete listing, contact us: sales@bittekhnika.ru
Images and Dimensions
Technical data
To cart Code OD, in Total length,
ft
Watercourse
size, in
D of ball,
in
Actuation pressure, atm. Weight, lb
PB-73G 3-3/8 1.77 1,0 1-1/16 2 057 41.89
PB-76G 3-3/4 1.82 1-1/8 1-3/16 2 057 46.3
PB-86G 4-1/8 1.92 1-1/4 1-1/8 2 057 61.73
PB-102G 5,0 2.3 1-9/16 1-11/16 2 057 110.2
PB-133G 7,0 3.17 2-1/8 2-1/4 2 057 286.6
PB-147G 7,0 3.25 2-1/8 2-1/4 2 057 291.0
You can specify the size of an item on the checkout page.
