MES Tubing Taper Tap

Application

MES tubing taper tap internally engages and retrieves tubing by tapping into its coupling during fishing operations in a wellbore.

Design

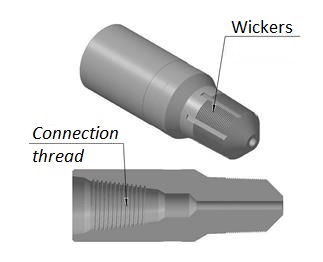

MES tubing taper tap is a tube section made of steel alloy. It has thread connection at the upper end, and external wickers at the lower end. Lengthwise flutes across the wickers facilitate tapping.
The taper tap has a watercourse for fluid circulation.
MES taper tap screws into tubing box and is retrieved together with the fish.
Other sizes, left/right-hand configuration, NUE/EUE wickers are available upon request.
All sizes are for reference only.

Images and Dimensions

Technical data

To cart	Code	OD, in	Watercourse size, in	Total length, ft	Top connection, compatible with API	Wickers	Max load capacity, lbf
	MES-73	3.74	0.59	0.91	2 7/8 Reg	NUE-73	168 600
	MES-89	3.74	0.78	0.91	2 7/8 Reg	NEU-89	224 800
