Hydraulic Bailer ZHG

Show video

Application

The Hydraulic Bailer ZHG is used to clean oil, gas and expendable wells with low formation pressure from clay mud, sludge, sand, incrustation and small metallic pieces without washover.

Design

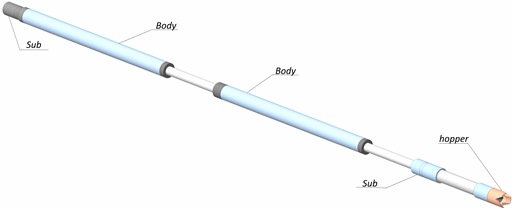

The Hydraulic Bailer ZHG consists of top sub, two hydraulic units with bodies, piston and cylinder units and subjacent intrusives, top, middle and lower valves, suction chamber and hopper with shutter.

Images and Dimensions

Technical data

To cart	Code	OD, in	Lift capacity, lbf	Length of hydraulic unit in closed condition, ft	Length of hydraulic unit in open condition, ft	Length of feather with valve and damper, ft	Length of suction chaber from tubing pipe Sh 89, in	Connection, API	Weight, lb
	ZhG-108	4.25	224 800	11.24	18.76	0.9	1.97	2-7/8 Reg	330.7

You can specify the size of an item on the checkout page.
