Application

UPP proppant plug milling tool is designed to drill out and wash over postfracturing proppant plugs in a wellbore.

Design

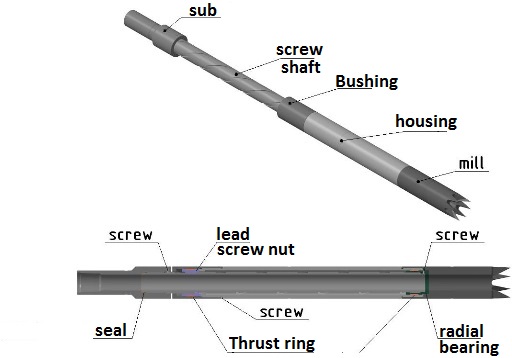

The tool consists of a mill with integral carburized teeth, a housing, a screw shaft, a lead screw nut, thrust rings and seals. After fracturing, the tool is run into the hole on tubing with reverse circulation on.
When suspended, the screw shaft is fully extended and the mill is in its lowest position. With the mill landing on the plug, and load applied to the tool increasing, coarse pitch of the screw shaft imparts torque to the mill. Hard teeth of the mill destroy proppant crust, while fluid circulates plug debris out of the well.
