MSZ Tool Joint Taper Tap

Show video

Application

MSZ tool joint taper tap internally engages and retrieves a drill pipe from a well by tapping into its tool joint.

Design

The taper tap is a tube section made of alloy steel. It has thread connection at the upper end, and external wickers, carburized and quenched, at the lower end. Lengthwise flutes across the wickers facilitate the tapping.
The taper tap has a watercourse for fluid circulation.
The taper tap is used for retrieval of drill pipes with damaged/flared tool joint.
All sizes are for reference only.

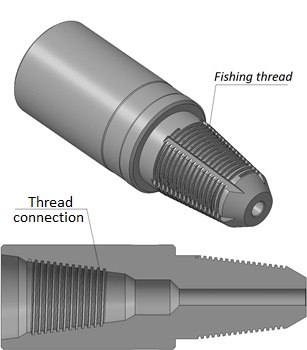

Images and Dimensions

Technical data

To cart	Code	Watercourse size, in	Total length, ft	Fishing connection, API	Tool OD, in	Max load capacity, lbf	Connection to fishing string, API	Weight, lb
	MSZ-66	9/16	0.85	2-3/8 Reg	3-3/16	224 800	2-3/8 Reg	14.55
	MSZ-73	9/16	0.92	NC 26	3-3/8	337 200	NC 26	16.98
	MSZ-76	9/16	0.92	2-7/8 Reg	3-3/4	337 200	2-7/8 Reg	20.5
	MSZ-86	13/16	0.92	NC 31	4-1/8	449 600	NC 31	23.15
	MSZ-88	1,0	0.92	3-1/2 Reg	4-1/4	449 600	3-1/2 Reg	25.13
	MSZ-102	1-3/16	1.18	3-1/2 IF	4-15/16	584 500	3-1/2 IF	55.12
	MSZ-133	1-1/2	1.25	NC 50	6-1/4	607 000	NC 50	74.52
	MSZ-147	2-3/8	1.34	5-1/2 FH	7-1/16	674 400	5-1/2 FH	87.52

You can specify the size of an item on the checkout page.
